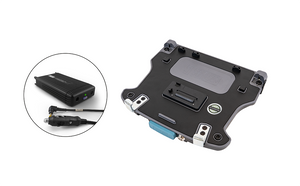

TOUGHBOOK 55/56 Lite Dock Kit (No RF) with 120W Cigarette Power Supply

TOUGHBOOK 55/56 Lite Dock Kit (No RF) with 120W Cigarette Power Supply — Gamber-Johnson part number 7170-1279-10.

Specifications

Features

• Effortless docking with floating connector and autodocking alignment
• Lite port replication with USB-C, USB-A, and Ethernet
• Front-facing USB-C port for convenient peripheral access
• LED status indicator for power and connection feedback
• Slim, low-profile design for maximum cabin space efficiency
• Rugged composite and steel construction with powder coat finish
• Secure latch and keyed lock for device protection
• VESA 75 compatibility for mounting
• Plug-and-play cigarette power adapter for easy setup
• TOUGHBOOK approved and backwards compatible with TOUGHBOOK 55 laptops

Product Details

• Model: TOUGHBOOK 55, TOUGHBOOK 56
• Device OEM: Panasonic
• Warranty: 3 Year Limited Warranty
• Power Supply: Power Adapter – Panasonic 120W – Auto Adapter (7300-0747)
• Testing Specifications: TOUGHBOOK Certified, MIL-STD 810H Shock/Vibration Tested, MIL-STD 810H Environmental Testing: Humidity, High/low temperature, (storage/operational), Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms, RoHS, FCC, CE, UKCA, SAE J1455 Shock Crash Hazard Test
• Port Replicators: 1 x RJ45 Ethernet 1Gbps, 1 x USB-A 5Gbps, 1.5A, 1 x USB-C 5Gbps, 0.9A, 1 USB-C 5Gbps, 1.5A (Without DP Alt Mode), 1 x USB-C 480Mbps, 0.5A (Front), 1 x 15 VDC Power Input
• Device Type: Laptop
• Industry: Fire/Rescue, Intermodal, Logistics, Material Handling, Public Safety, Utility
• Port Replication: Lite
• Sub Type 1: Docking Kit

Downloads

• Product Sheet (PDF)
• Installation Guide (PDF)
• Testing Summary (PDF)
