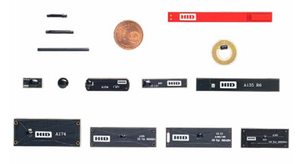

Sentry Tag PCB - RAIN (UHF): 860 MHz to 960 MHz

HID Sentry PCB tags are small, low-profile RFID tags that offer excellent read range with minimal ergonomic impact. Their low profile ensures they remain secure on assets like weapons, hand tools, and small metal parts. These tags are highly resistant to impact, vibration, temperature, and chemicals, with an IP68 rating. They can be adapted for over-molding, over spraying, or embedding in metal. The Sentry Instrument variant is optimized for long metallic tools like medical instruments. e-Module transponders provide high-frequency coils in a robust housing to withstand high-heat manufacturing processes.

Product family: Sentry Tag
Sub-family: PCB
Description: Highly configurable, PCB based RFID tags with exceptional Size-to-Performance Ratio
Chip type: Higgs 3, M750
EPC | TID: 96 bit | 64 bit
User memory up to: 512 bit
Reading distance up to: 33 ft. (10m)
Other frequencies: HF
Dimensions Refer to datasheets for other available sizes: max. 1.52 × 0.67 × 0.22 in (38.6 × 17 × 5.6 mm)
Mount on metal: Yes
Moisture resistance: IP68, IP69K
Operating temperature: -58° to 185° F (-50° to 85° C)
Peak temperature to: 365° F (185° C)
