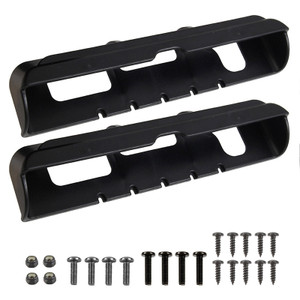

The RAM-HOL-TAB17-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.
HARDWARE INCLUDED
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.35 lb
RAM® Tab-Tite™ Assembly Guide
