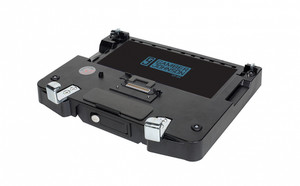

Panasonic Toughbook CF54 Docking Station - NO RF - 7160-0577-00

Panasonic Toughbook CF54 Docking Station - NO RF - 7160-0577-00 | 7160-0577-00

Part #: 7160-0577-00

Brand: Gamber-Johnson

Product Description

Panasonic Toughbook CF54 Docking Station - NO RF — Gamber-Johnson part number 7160-0577-00.SpecificationsWeight5.50 lbs. / 2.5 kgHeight3.50" / 8.9 cmWidth13.48" / 34.2 cmDepth11.85&quo…

Contact Us For Volume Pricing

1-877-437-3028

Chat

MSRP: $1,420.00
$881.82
Minimum Advertised Price
(You save $538.18 )
Adding to cart… The item has been added
✓ Available — ships from manufacturer · typically 1–2 business days
Brand:
Gamber-Johnson
SKU:
7160-0577-00
Shipping:
Calculated at Checkout
Weight:
12.00 LBS

Panasonic Toughbook CF54 Docking Station - NO RF — Gamber-Johnson part number 7160-0577-00.

Specifications

Weight5.50 lbs. / 2.5 kg
Height3.50" / 8.9 cm
Width13.48" / 34.2 cm
Depth11.85" / 30.1 cm

Features

  • Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
  • Small footprint - designed to maximize available space inside of vehicle
  • Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
  • Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system Spring-loaded docking connector to ensure connectivity in the roughest terrain
  • Front safety bracket and rear corners ensure proper alignment and docking connectivity
  • Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
  • This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
  • Special access area for smart card reader makes it easy to insert and eject card
  • Push button latch with keyed lock for theft deterrence:

Product Details

  • Model: TOUGHBOOK 54/55
  • Device OEM: Panasonic
  • Warranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options Available
  • Power Supply: LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216), LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461), LIND 11-16VDC Auto Power with cigarette lighter connector (7300-0462)
  • Testing Specifications: TOUGHBOOK Certified, RoHS, FCC, C-Tick, E-Mark, Vibration Testing: MIL-STD 810G 514.5, Docking Handle Tested: 10,000 cycles, SAE Standard J1455 crash test
  • Port Replicators: Ethernet - RJ45, Fully Powered USB 3.0 (2) - 9 pin, VGA - D-sub 15 pin, HDMI - 19 pin, Serial - D-sub 9 pin, Input Voltage - 15.6 V DC
  • Antenna Pass-through: No RF
  • Device Type: Laptop
  • Industry: Fire/Rescue, Public Safety, Utility
  • Port Replication: Full
  • Sub Type 1: Dock
