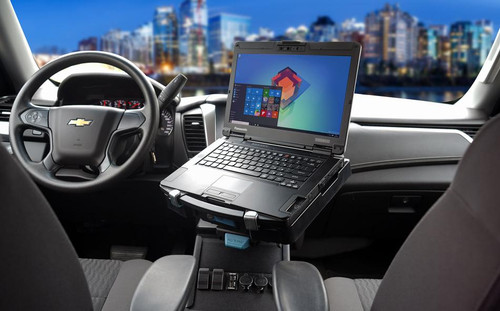

  5. Panasonic Toughbook 55 DUAL RF LITE Port Replication laptop vehicle docking station. Keyed alike | 7160-0577-22 | 7160-0577-22
Panasonic Toughbook 55 DUAL RF LITE Port Replication laptop vehicle docking station. Keyed alike | 7160-0577-22 | 7160-0577-22

Panasonic Toughbook 55 DUAL RF LITE Port Replication laptop vehicle docking station. Keyed alike | 7160-0577-22 | 7160-0577-22

Part #: 7160-0577-22

Brand: Gamber-Johnson

Product Description

Panasonic Toughbook 55 DUAL RF LITE Port Replication laptop vehicle docking station. Keyed alike | 7160-0577-22 This docking station is compatible with the Toughbook 54 and 55 laptop computers…

Contact Us For Volume Pricing

1-877-437-3028

Chat

MSRP: $1,645.00
$1,006.63
Minimum Advertised Price
(You save $638.37 )
Adding to cart… The item has been added
✓ Available — ships from manufacturer · typically 1–2 business days
Brand:
Gamber-Johnson
SKU:
7160-0577-22
Shipping:
Calculated at Checkout
Weight:
5.00 LBS

Panasonic Toughbook 55 DUAL RF LITE Port Replication laptop vehicle docking station. Keyed alike | 7160-0577-22

This docking station is compatible with the Toughbook 54 and 55 laptop computers and accommodates the optional modular expansion area on the Toughbook 54 and 55. This docking station features dual antenna pass-through and has lite port replication, including Ethernet, Serial, and powered USB.

ANTENNA PASS-THROUGH

  • Dual RF (TNC)

PORT REPLICATORS

  • Ethernet RJ45
  • Fully Powered USB 3.0 (2) - 9 pin
  • Serial D-sub 9 pin
  • Antenna Pass-Through (2) - TNC
  • Input Voltage 15.6 V DC
  • RF Switch

POWER SUPPLY

  • Power adapter is not included, please use one of the following:
    • LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
    • LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
    • LIND 11-16VDC Auto Power with cigarette lighter connector (7300-0462)

FEATURES

  • Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
  • Small footprint - designed to maximize available space inside of vehicle
  • Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as Toughbook Certified
  • Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain
  • Front safety bracket and rear corners ensure proper alignment and docking connectivity
  • Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
  • This docking station accommodates the optional modular expansion area on the Toughbook 54/55 computer
  • Special access area for smart card reader makes it easy to insert and eject card
  • Push button latch with keyed lock for theft deterrence:
    • Push the latch to release the docking connector
    • Insert computer and push latch closed to dock computer
  • Can be used with Motion Attachments with the VESA 75mm hole pattern only
  • Rugged composite/steel construction with black powder coat finish for long-term durability
  • Antenna switch position:
    • Switch set toward outside of dock: Uses exterior antenna
    • Switch set to inside of the dock: Uses laptop antenna

CERTIFICATIONS & TESTING

  • Toughbook Certified
  • RoHS, FCC
  • C-Tick, E-Mark
  • Vibration Testing: MIL-STD 810G 514.5
  • Docking Handle Tested: 10,000 cycles
  • SAE Standard J1455 Crash Test

WARRANTY
