KIT: Rugged Lite Backlit Keyboard and Quick Release Keyboard Cradle | 7170-0817-01

KIT: Rugged Lite Backlit Keyboard and Quick Release Keyboard Cradle | 7170-0817-01

Part #: 7170-0817-01

Product Description

KIT: Rugged Lite Backlit Keyboard and Quick Release Keyboard Cradle | 7170-0817-01  This kit includes Gamber-Johnson’s low-profile Rugged Lite Backlit Keyboard and quick release key…

Contact Us For Volume Pricing

1-877-437-3028

Chat

MSRP: $252.00
$209.47
Minimum Advertised Price
(You save $42.53 )
Adding to cart… The item has been added
SKU:
7170-0817-01
Shipping:
Calculated at Checkout
Weight:
1.00 LBS

KIT: Rugged Lite Backlit Keyboard and Quick Release Keyboard Cradle | 7170-0817-01

This kit includes Gamber-Johnson’s low-profile Rugged Lite Backlit Keyboard and quick release keyboard tray. The keyboard is thin, light-weight, has an ergonomic feel and is the perfect keyboard solution for a mobile office. The quick release keyboard tray is compatible with the Rugged Lite Backlit Keyboard and enables the keyboard to be temporarily removed. The keyboard tray mounts with a VESA 75mm mounting pattern. This kit will give you what you need to securely take your work wherever you go.

KIT INCLUDES

ANTENNA PASS-THROUGH

  • None

PORT REPLICATOR

  • USB 2.0 (500mA)

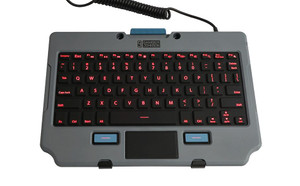

RUGGED LITE BACKLIT KEYBOARD FEATURES

  • Integrated center Touchpad with right and left mouse button
  • 76-key keyboard with 12 function keys for custom operation
  • Integrated red backlighting with four levels of intensity and ON/OFF control
  • Low-profile ergonomic design for ease of use in a mobile environment
  • Emergency Key - a configurable key that can be used to send for emergency help or assistance
  • Silicone rubber keys with white lettering and a rugged ABS polycarbonate case
  • Input cable: USB Type A male connector (1.5 m/59.0 inch cable)
  • Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms
  • USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA)
  • Rubber feet to prevent slippage
  • Keyboard is compatible with Gamber-Johnson custom keyboard tray (7160-1470-00)
  • Available in US English (7160-1683-00), UK (7160-1683-01), German (7160-1683-02), French (7160-1683-03), and Spanish (7160-1683-04). Contact Gamber-Johnson for other language options. Minimum Order Quantity 250 units on all languages other than US English.
  • Specifications:
    • Power: 5Vdc @ <500mA from data cord
    • Designed and tested to MIL-STD 810G shock and vibration specifications
    • Temperature range:   OPERATING:  -20°C to 60°C   STORAGE:  -40°C to 85°C
    • Designed to IP54 ingress specifications
    • Two million actuations per key

QUICK RELEASE KEYBOARD CRADLE FEATURES

  • Easily insert or release the USB keyboard:
    • Insert bottom of keyboard into tray, match indents in keyboard with hooks on tray, then push top of keyboard into tray and engage latch
    • To remove, push latch to disengage and pull keyboard out of computer out of tray
  • VESA 75mm mounting pattern, attach to most Gamber-Johnson motion attachments
  • Black powder coat finish

WARRANTY

  • Keyboard: 1 year limited warranty
  • Quick Release Keyboard Cradle: Limited Lifetime Warranty
