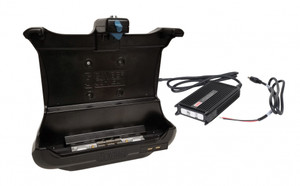

KIT: CF-33 DUAL RF LITE tablet dock 7160-0907-07 and LIND power adapter #14103 - 7170-0685-02 | 7170-0685-02

KIT: CF-33 DUAL RF LITE tablet dock 7160-0907-07 and LIND power adapter #14103 — Gamber-Johnson part number 7170-0685-02.

Specifications

Features

• Compatible with the Panasonic CF-33 Toughpad
• Kit includes (item no. 7160-0907-07) DUAL RF docking station + (item no. 14103) LIND 120V auto power adapter
• Easy to use one-handed operation:
  • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
• Can be used in horizontal or vertical position
• Floating docking connector for a reliable connection even in extreme environments
• Accommodates either a tablet's hand strap or an additional battery pack.
• Optional keyed lock for theft deterrence
• Alignment tabs prevent damage to docking connector when docking the computer.
• Vesa 75mm mounting pattern
• Rounded edges to enhance personal safety
• Dual RF TNC

Product Details

• Model: TOUGHBOOK 33
• Warranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options Available
• Port Replicators: USB 3.0 (2), USB 2.0 (2), USB 2.0 on front (2), Ethernet (2), Serial 9 pin, External Antenna Select Switch, Power Input
• Antenna Pass-through: Dual RF
• Device Type: Tablet
• Industry: Fire/Rescue, Logistics, Material Handling, Public Safety, Utility
• Port Replication: Lite
• Sub Type 1: Docking Kit
• Notes:
  • InfoCase TBC33MBBDL-P Toughmate 33 Mobility Bundle
  • InfoCase TBC33HDSTP-P Toughmate 33 Rotating Hand Strap
  • InfoCase TBCDURA-XSTP-P Toughmate 33 DuraStrap X

Downloads

• Product Sheet (PDF)
• Installation Guide (PDF)
• Testing Summary (PDF)
