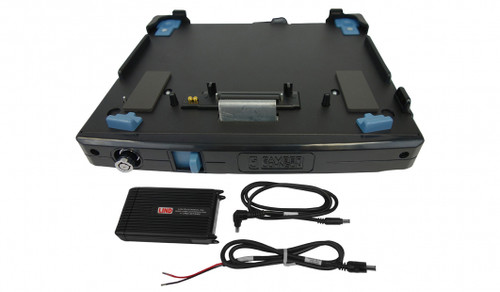

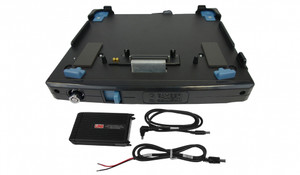

KIT: CF-20 DUAL RF dock 7160-1265-02 and LIND power adapter #11798 — Gamber-Johnson part number 7170-0681-02.

Specifications

Features

• Compatible with the Panasonic TOUGHBOOK 20 and G2 2-in-1 tablet computers with attachable keyboards
• Panasonic TOUGHBOOK Certified utilizing Panasonic Certified electronics
• Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
• Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
• Can be used in either laptop or tablet orientation.
• Composite/aluminum design for reduced weight and durability
• Designed with rounded edges to enhance personal safety
• Rear-facing I/O ports, integrated cable strain relief and cable management system
• Access to all notebook control buttons and ports while the notebook is docked
• Floating docking connector for reliable connectivity in the most rugged environments
• Keyed lock for theft deterrence
• VESA 75 mm mounting pattern

Product Details

• Model: TOUGHBOOK 20, TOUGHBOOK G2
• Device OEM: Panasonic
• Warranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options Available
• Power Supply: Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
• Testing Specifications: TOUGHBOOK Certified, MIL-STD 810G Shock/Vibration Tested, MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational), Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms, RoHS, FCC, CE, C-TICK, UKCA, SAE J1455 Shock Crash Hazard Test
• Port Replicators: Panasonic certified electronics, (2) USB 3.0 - 9 pin, (1) HDMI - 19 pin, (1) Serial - D-sub 9-pin, (1) Ethernet - RJ45, (1) VGA D-sub -15-pin, Antenna switch, Dual RF Pass-Through (optional) - TNC, Power supply input - DC 15.6V-16V
• Antenna Pass-through: Dual RF
• Device Type: Laptop
• Industry: Fire/Rescue, Public Safety, Utility
• Port Replication: Full
• Sub Type 1: Docking Kit
• Notes:
  • Compatible with the Panasonic Toughbook 20 and G2 tablets with attachable keyboards.

Downloads

• Product Sheet (PDF)
• Installation Guide (PDF)
• Testing Summary (PDF)
