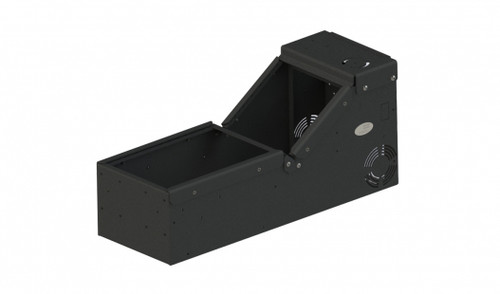

Universal console box only with sloped front - 7160-0896 | 7160-0896

Universal console box only with sloped front — Gamber-Johnson part number 7160-0896.

Specifications

Features

• Low profile, universal console with sloped front mounting area.
• Designed to work with top/tunnel plate and leg kits.
• Fully welded construction for long term product life span.
• Front plate of console (underneath dash) has placement for a power distribution block or Lind shut-down timer using pre-configured mounted holes.
• Mounting for armrest - both on back and sides of console box.
• Mounting for the side document pocket (item no. 7160-0464).
• Mounting on both sides of console box for standard mic clips.
• Box ships fully assembled.
• Includes 3 faceplates and 3 filler panels that require assembly.
• Note:Top plate is needed. Mounts to top plate item no. 7160-0085 or 7160-0086.

Vehicle Compatibility

• UNIVERSAL

Product Details

• Warranty: Limited Lifetime Warranty
• Mounting Space: Horizontal Section accommodates 11.5" (29.21 cm) of mounting space, Vertical Section accommodates 7.5" (19.05 cm) of mounting space
• Industry: Fire/Rescue, Public Safety, Utility
• Sub Type 1: Console System
• Sub Type 2: Console Box
• Sub Type 3: Standard
• Notes:
  • Has a mounting space of 7.5" (19.05 cm) to accommodate 1 to 2 full-sized devices.
  • Two 12 volt plug knockouts located on passenger side.
  • Knock out for the USB/AUX input module (Item no. 16648) or dual USB power port (item no. 15371) located on passenger side.
  • Opening on sides of console boxes for audio output devices to be mounted behind.
  • Computer can be center mounted either off-set towards the passenger on the "smiley face pattern" or on the 3-bolt pattern closer to the driver for easy articulation access.

Downloads

• Installation Guide (PDF)
