Ultra Small RFID Patch Antenna. No Radome. 902-928 MHz for FCC RFID. CUS-01138

Name: Ultra Small RFID Patch Antenna. No Radome. 902-928 MHz for FCC RFID. CUS-01138
Brand: Times-7
SKU: CUS-01138

Part #: CUS-01138

Brand: Times-7

Product Description

Contact Us For Volume Pricing

1-877-437-3028

Chat

Current Stock: 11

$146.91

Quantity:

Adding to cart… The item has been added

✓ In Stock — same-day shipping by 4PM MST

Product Details

Brand:: Times-7
SKU:: CUS-01138
Shipping:: Calculated at Checkout
Weight:: 0.30 LBS

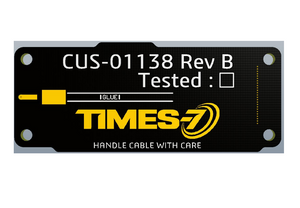

The CUS-01138 is ultra-small, UHF (902-928 MHz) RFID Near-Field patch antenna for close proximity reads, constructed on a double-sided printed circuit board with a 23 inch long RG316 cable and SMA Male connector. The antenna is a linear polarized 1/4 wave planar patch antenna with the radiating surface and the ground plane made from conductive copper whereas the dielectric substrate used is FR-4 (fiber glass epoxy). The radiating patch is fed by a microstrip line which is excited by the RG-316 cable. The patch antenna is linearly polarized along the long edge of the PCB. The electrostatic discharge will be grounded through the coaxial cables ground.

Datasheet (PDF)
