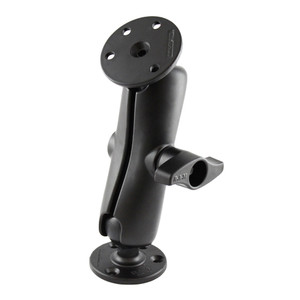

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and STANDARD length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 11.125"
SOCKET TO SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawing
PLATE SIZE
3.68" Diameter
BALL SIZE
D Size (2.25")
WEIGHT CAPACITY
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.95 lb
Drawing File - Large Round Ball Plate
