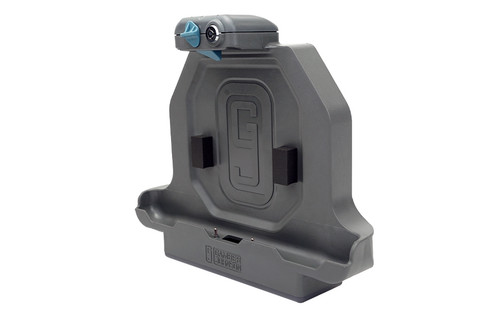

KIT: Zebra ET51/56 8" SLIM Powered Cradle (7160-1506-10) and LIND 12-32V Isolated Power Adapter (7300-0466) | 7170-0853-12
Gamber-Johnson's Zebra ET51/56 Tablet Charging Cradle will keep your ET51/56 computer charged all day long; This kit includes a LIND 12-32VDC isolated power adapter. Now shipping.
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- Power Input 12VDC through pogo pin connector
POWER SUPPLY INCLUDED
- Yes - LIND isolated material handling power adapter, 12-32 VDC input range, 12 VDC output voltage, 3.5 Amps output current with bare wire lead (7300-0466)
FEATURES
- Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
- This cradle does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the cradle
- Compatible with Windows or Android operating systems
- Access to all control buttons and ports while the tablet is safely docked
- Guide pins prevent damage to the charging pins when cradling the tablet
- Powered POGO pins transfer power to the Zebra tablet (requires external power adapter)
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
- Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of cradle
TESTING & CERTIFICATES
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra ET51/56 8" SLIM Tablet Charging Cradle
- LIND 12-32V isolated power adapter
- Mounting hardware
- Installation guide
WARRANTY
- Cradle: 3-Year Limited Warranty
- Power Adapter: 3-Year Warranty
- Explore our extended warranty program
