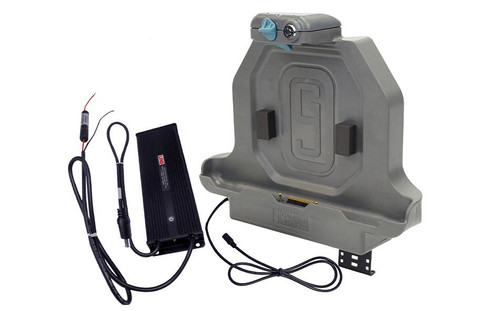

KIT: Zebra ET50/51 55/56 8" Dual USB Docking Station w/MP205 connector (7160-1506-02) and LIND 20/60 VDC Isolated Power Adapter w/MP205 connector (7300-0473) | 7170-0890-20
Gamber-Johnson's Zebra ET51/56 8" SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. This kit includes a LIND isolated material handling power adapter with MP205 connector to quickly attach to the docking station. Now shipping.
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- (2) Powered USB 2.0 (1.5A each)
POWER SUPPLY
- Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked
- Includes LIND 20-60V isolated material handling power adapter with MP205 connection (7300-0473)
FEATURES
- Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
- This docking station does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the docking station
- Compatible with Windows or Android operating systems
- POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
- 8-40V power input range with power filtering PCB
- Dual powered USB ports; 1.5A for each port to connect peripheral devices
- Access to all control buttons and ports while the tablet is safely docked
- Bottom-facing I/O ports; integrated cable restraint/cable management system
- 40" power cable with MP205 in-line jack to quickly connect to a compatible power adapter
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of docking station
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra ET51/56 8" SLIM Dual USB Docking Station with MP205 Connection
- LIND 20-60V isolated power adapter w/MP205 connector
- Mounting hardware
- Installation guide
WARRANTY
- 3-Year Limited Warranty
- Explore our extended warranty program
