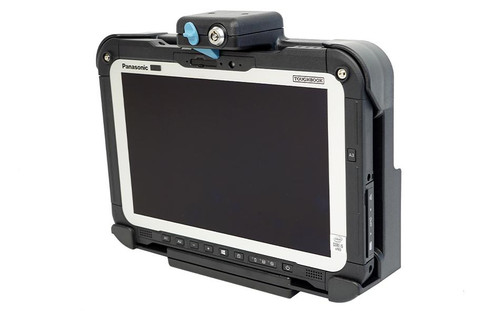

KIT: Panasonic Toughbook G1 THIN Docking Station with LITE Port Replication, Dual RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0969-02
The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap for the tablet, this dock features dual RF antenna connection, lite port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle. This kit includes an auto power adapter.
ANTENNA PASS-THROUGH
- Dual RF (TNC)
PORT REPLICATOR
- Panasonic certified electronics
- (1) Ethernet - RJ45
- (1) Serial - D-sub 9-pin
- (2) USB 3.0 (900mA) - 9 pin
- Dual RF Pass-through (optional) - TNC
- Power input - 16VDC
- Antenna Switch
POWER SUPPLY
- Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
FEATURES
- Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small bumper guards
- Panasonic certified electronics
- Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
- Access to all tablet control buttons and ports while tablet is docked
- Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer
- To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
- Upward-facing I/O ports; integrated cable strain relief and cable management system
- Keyed lock for theft deterrence
- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
CERTIFICATES & TESTING
- Toughbook Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE, C-TICK, UKCA
- SAE J1455 Shock Crash Hazard Test
KIT INCLUDES
- Panasonic FZ-G1 Docking Station
- Mounting Hardware
- LIND 11-16V Auto Power Adapter
- Installation Instructions
WARRANTY
- 3-Year Limited Warranty
- Explore our extended warranty program
