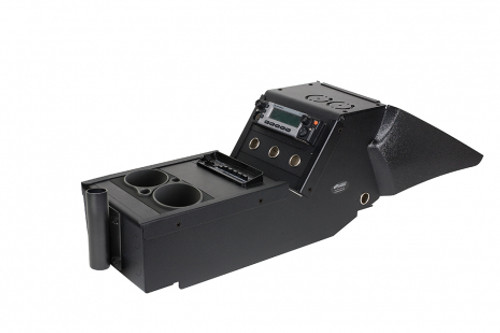

Kit includes console box 7160-0353, a cup holder 7160-0846, vertical surface mount 14594, and a hardware bag 7120-0593 - 7170-0564-03 | 7170-0564-03

Kit includes console box 7160-0353, a cup holder 7160-0846, vertical surface mount 14594, and a hardware bag 7120-0593 — Gamber-Johnson part number 7170-0564-03.

Specifications

Features

• Low profile vehicle specific console box
• Five (5) fasteners for mounting right to transmission hump, does not require a Leg Kit or MCS Top Plate
• Removable top and center plate for easy radio installation and wire routing
• Five (5), 12 Volt knock-outs located on passenger side
  USB and MP3 knock-outs from stock console relocated on passenger side
• Computer can be mounted on top of the console box and has the ability to be off-set towards the passenger on the “smiley face pattern” or mounted to the driver side with the 3-bolt hole pattern
• Box ships fully assembled with molded dash filler panels to give the box a sleek look for blending in with the car’s aesthetics
• Includes 3 faceplates and 3 filler panels
• Heavy gauge steel, fully welded construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

Vehicle Compatibility

• Dodge
  • Charger - 2011-2020

Product Details

• Device OEM: Dodge
• Warranty: Limited Lifetime Warranty
• Mounting Space: Horizontal, low profile section accommodates 10.0" (25.4 cm) of mounting space or 5.5" (14.0 cm) mounting space with cup holder and is designed to house radio control heads and accessories, Vertical, angled section accommodates 6" (15.24 cm) of mounting space and is designed to house full-sized radios
• Industry: Fire/Rescue, Public Safety
• Sub Type 1: Console System
• Sub Type 2: Console Box Kit
• Sub Type 3: Standard
• Notes:
  • Does NOT work with UConnect 12.1 screen option
  • Console box not compatible with legacy Dodge Chargers

Downloads

• Installation Guide (PDF)
