KIT: Getac A140 TRI RF TABLET docking station 7160-1246-03 and Getac 120W power adapter #17057 - 7170-0695-03 | 7170-0695-03

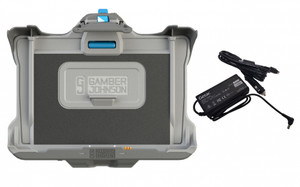

KIT: Getac A140 TRI RF TABLET docking station 7160-1246-03 and Getac 120W power adapter #17057 — Gamber-Johnson part number 7170-0695-03.

Specifications

Features

• Designed for the Getac A140 tablet computer
• Kit includes (item no. 7160-1246-03) TRI RF docking station + (item no. 17057) Getac 120W auto power adapter
• Docking station design accommodates tablet's built-in rubber hand strap, stylus, and optional multi-function hard handle (sold separately)
• Access to all tablet control buttons, ports, smart card reader and front camera while tablet is docked
• Easy to use one-handed operation: Insert bottom of computer into the dock, push top of computer against latch button until latch engages
• To remove, push up on latch-button with thumb to disengage and pull computer out of the dock
• Access to all tablet control buttons, ports, smart card reader and front camera while tablet is docked
• Upward-facing I/O ports; integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• Optional keyed lock for theft deterrence
• Rounded edges to enhance personal safety Gamber-Johnson rugged construction and reliability
• Composite/aluminum design for reduced weight and durability VESA 75mm mounting pattern
• TRI-RF SMA

Product Details

• Model: A140
• Device OEM: Getac
• Warranty: 3 Year Limited Warranty, Extended Warranty/Gamber Guard Options Available
• Port Replicators: Ethernet (1) RJ45, USB 2.0 (3) 4- pin, USB 3.0 (1) 9 pin, VGA (1) D-sub 9 pin HDMI (1) 19 pin, Serial (1) D-sub 9 pin, Headphones/speakers, Stereo phone jack, Microphone Mono phone jack, Power Input 19 Vdc, RF Pass Through SMA
• Antenna Pass-through: Tri RF
• Device Type: Tablet
• Industry: Fire/Rescue, Logistics, Material Handling, Public Safety, Utility
• Port Replication: Full
• Sub Type 1: Docking Kit

Downloads

• Product Sheet (PDF)
• Installation Guide (PDF)
• Testing Summary (PDF)
