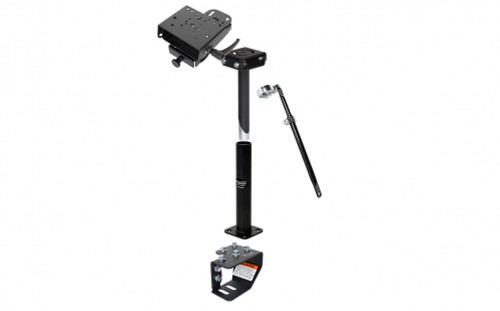

Kit, Ford Transit Connect 2014+ Vehicle Base - 7160-0536, DS-LOWER-9, 7160-0178, 7160-0230, 7160-0500 - 7170-0238 | 7170-0238

Kit, Ford Transit Connect 2014+ Vehicle Base - 7160-0536, DS-LOWER-9, 7160-0178, 7160-0230, 7160-0500 — Gamber-Johnson part number 7170-0238.

Features

• Vehicle Base attaches to the passenger side seat studs.
• Base works with the new Ford F-150 Aluminum Body Style Truck.
• Designed using heavy gauge steel for long-term durability.
• Lower Tube provides vertical clearance over the center console or the seat.
• Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• 6” Locking Slide Arm can rotate around 360° with locking points every 15°.
• Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°.
• Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
• Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration.

Vehicle Compatibility

• Ford
  • Transit Connect - 2014-2025

Product Details

• Device OEM: Ford
• Warranty: Limited Lifetime Warranty
• Sub Type 1: Pedestal System
• Sub Type 2: Pedestal Kit
