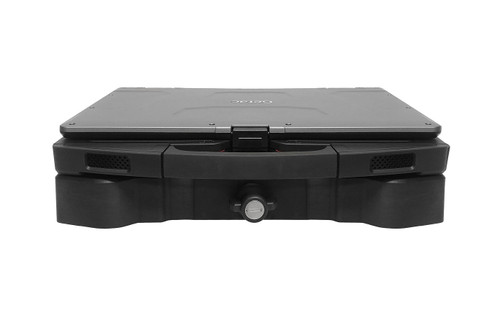

Getac NO RF S410 Cradle No port replication - 7160-0791-00 | 7160-0791-00

Getac NO RF S410 Cradle No port replication — Gamber-Johnson part number 7160-0791-00.

Specifications

Features

• Small footprint designed to maximize available space
• Rear hooks and guide pins ensure proper alignment and docking connectivity
• Plate draws back into docking station when the computer is docked
• Docking station designed to accommodate optional VGA attachments
• Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Screen support is included with the dock
• Optional power supply bracket (7120-0736) to attach Getac power supply to the bottom of the dock (sold separately)

Product Details

• Model: S410
• Device OEM: Getac
• Warranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options Available
• Testing Specifications: RoHS, FCC, C-Tick, MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage), Vibration/shock testing: MIL-STD 810G 514.5, Docking mechanism tested: 30,000 cycles SAE Standard J1455 Crash Test
• Antenna Pass-through: No RF
• Device Type: Laptop
• Industry: Fire/Rescue, Public Safety, Utility
• Port Replication: NA
• Sub Type 1: Cradle

Downloads

• Product Sheet (PDF)
• Installation Guide (PDF)
• Testing Summary (PDF)
