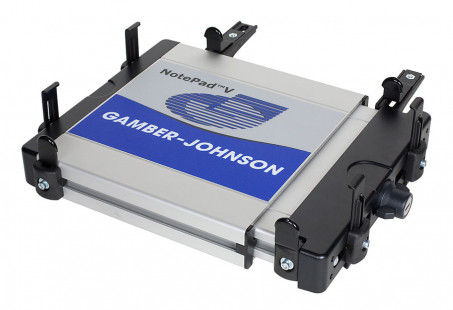

For use with computers where the keyboard extends to the left and right edge of the computer - 7160-0250-02 | 7160-0250-02

For use with computers where the keyboard extends to the left and right edge of the computer — Gamber-Johnson part number 7160-0250-02.

Specifications

Features

• For use with computers that the keyboards extend to the left and right edge of the computer
• Heavy-duty extruded aluminum construction for long-term durability
• Slim form design provides low mounting capability
• Special "flanged" side clip design provides superior strength and can be easily adjusted; they:
  • are "one-size-fits-all"; work with most computers
  • feature T-molded polycarbonate covers that hold clips in place during installation for easy height adjustment
• Reversible front and back supports adjust to accommodate varying depths of computers
• Rear support brace is gusseted for added restraint
• 90 degrees wing turn closure latch:
  • allows for fast initial size adjustment
  • allows for quick computer insertion and removal
  • has built-in heavy duty key lock (keyed alike)
• Molded polycarbonate end caps ensure that the computer is level when in the cradle
• Sliding mounting bar on the bottom allows for multiple positions for offset capabilities when used with a the Motion Attachment
• Can be used with optional accessories (Screen Support; LED Light and Microphone Clip)

Product Details

• Device OEM: Universal/Other
• Warranty: Limited Lifetime Warranty
• Industry: Fire/Rescue, Material Handling, Public Safety, Utility
• Placement: Pre-drilled; threaded holes align with any Gamber-Johnson Motion Attachment. Multiple mounting holes allows the computer mount to be off set to avoid other equipment; if necessary
• Sub Type 1: Universal/Other
• Notes:
  • Width Adjustable: Yes - Can adjust to computer widths from 10.62" - 15.75" with standard side clips. Computers widths exceeding 15.75" and no more than 16.5" can be accommodated with removal of the side clips and additional installation.
  • Depth Adjustable: Yes - adjusts to computer depths from 9.0" - 12.38". (Note: Depth may be further adjusted to accommodate computers 8.5" - 9" using supplied Support Clip Riser.)
  • Thickness Adjustable: Yes - adjusts to computer thickness (measured with screen open) from 0" - 1.5"

Downloads

• Installation Guide (PDF)
