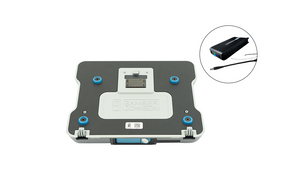

Dell Rugged Laptop Docking Station; No RF; Full Port Replication with LIND 120W Auto Power Adapter | 7170-1090-10

Name: Dell Rugged Laptop Docking Station; No RF; Full Port Replication with LIND 120W Auto Power Adapter | 7170-1090-10
Brand: Gamber-Johnson
SKU: 7170-1090-10

Part #: 7170-1090-10

Brand: Gamber-Johnson

Product Description

Dell Rugged Laptop Docking Station; No RF; Full Port Replication with LIND 120W Auto Power Adapter — Gamber-Johnson part number 7170-1090-10.SpecificationsWeightDock: 5.6 lbs / 2.5 kg Power Supp…

Contact Us For Volume Pricing

1-877-437-3028

Chat

MSRP: $1,314.00

$866.84

Minimum Advertised Price

(You save $447.16 )

Quantity:

Adding to cart… The item has been added

✓ Available — ships from manufacturer · typically 1–2 business days

Product Details

Brand:: Gamber-Johnson
SKU:: 7170-1090-10
Shipping:: Calculated at Checkout
Weight:: 2.00 LBS

Dell Rugged Laptop Docking Station; No RF; Full Port Replication with LIND 120W Auto Power Adapter — Gamber-Johnson part number 7170-1090-10.

Specifications

Weight	Dock: 5.6 lbs / 2.5 kg Power Supply: 0.85 lbs / 0.39 kg
Height	Dock: 2.36 in / 6.0 cm Power Supply: 1.1 in / 2.79 cm
Width	Dock: Hooks expand from 10.7 in - 12.85 in / 27.2 cm - 32.6 cm Power Supply: 3.1 in / 7.87 cm
Depth	Dock: 12.13 in / 30.8 cm Power Supply: 5.35 in / 13.59 cm

Features

Access to all device control buttons and ports while the computer is docked
Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers
Rear-facing I/O ports; integrated cable strain relief and cable management system
Front-facing docking/release latch
Keyed lock for theft deterrence
Optional Tri RF (WWAN,WLAN, GPS) TNC
Gamber-Johnson rugged construction and reliability
Composite design for reduced weight and durability
VESA 75mm mounting pattern
Note: Docking Drivers are required for this docking station. Please find the drivers here.

Product Details

Model: 12 Rugged Extreme Laptop (7204/7214), 13 Pro Rugged Laptop (RA13250), 14 Pro Rugged Laptop (RB14250), 14 Rugged Extreme Laptop (7330), 14 Rugged Extreme Laptop (7404/7414/7424/7330), 14 Rugged Laptop (5404/5414/5420/5424/5430)
Device OEM: Dell
Warranty: 3 Year Limited Warranty, 3-year Limited Warranty by LIND, Extended Warranty/Gamber Guard Options Available
Power Supply: Includes LIND 120W Auto Power Adapter (7300-0714)
Testing Specifications: Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms, MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational), MIL-STD 810G Shock/Vibration Tested, RoHS, FCC, CE, SAE J1455 Shock Crash Hazard Test
Port Replicators: (1) Ethernet, RJ45, (1) HDMI, (1) Serial, D-sub 9-pin, (1) USB-A 2.0, (1) USB-C 3.0, (2) USB-A 3.0, Power input, 19VDC, Tri RF Pass-through (optional), TNC
Antenna Pass-through: No RF
Device Type: Laptop
Industry: Fire/Rescue, Public Safety, Utility
Port Replication: Full
Sub Type 1: Docking Kit
