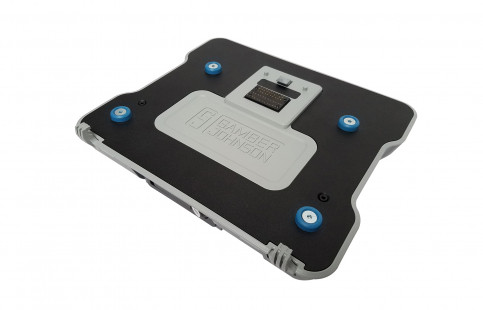

Dell NO RF Laptop Cradle - 7160-0883-00 | 7160-0883-00

Dell NO RF Laptop Cradle — Gamber-Johnson part number 7160-0883-00.

Specifications

Features

• Access to all device control buttons and ports while the computer is docked
• Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers
• Front-facing docking/release latch
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability
• VESA 75mm mounting pattern

Product Details

• Model: 12 Rugged Extreme Laptop (7204/7214), 13 Pro Rugged Laptop (RA13250), 14 Pro Rugged Laptop (RB14250), 14 Rugged Extreme Laptop (7330), 14 Rugged Extreme Laptop (7404/7414/7424/7330), 14 Rugged Laptop (5404/5414/5420/5424/5430), 14 Rugged Laptop (5430)
• Device OEM: Dell
• Warranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options Available
• Power Supply: LIND 90W auto power adapter (Item No. 7300-0468), LIND 12-32 VDC isolated power supply (Item No. 7300-0305), LIND 20-60 VDC isolated power supply (Item No. 7300-0306), LIND 72-110 VDC Isolated Power Adapter (Item No. 7300-0430)
• Testing Specifications: MIL-STD 810G Shock/Vibration Tested, MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational), Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms, RoHS, FCC, CE, SAE J1455 Shock Crash Hazard Test
• Antenna Pass-through: No RF
• Device Type: Laptop
• Industry: Fire/Rescue, Public Safety, Utility
• Orientation: Horizontal
• Port Replication: NA
• Sub Type 1: Cradle
• Notes:
  • 12 Rugged Extreme 7204/7214
  • 14 Rugged Extreme 7404/7414/7424
  • 14 Rugged 5404/5420/5424/5414
  • 14 Rugged 5430
  • 14 Rugged Extreme 7330

Downloads

• Product Sheet (PDF)
• Installation Guide (PDF)
• Testing Summary (PDF)
