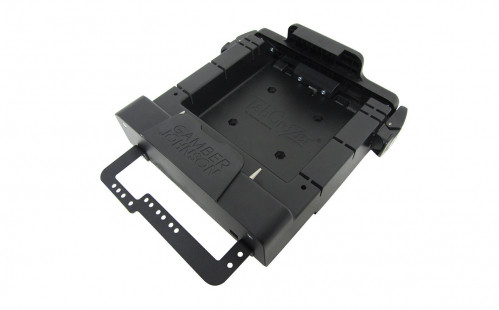

10" powered cradle - 7160-0818-04 | 7160-0818-04

10" powered cradle — Gamber-Johnson part number 7160-0818-04.

Specifications

Features

• Designed and tested for MIL-STD 810G specifications
• Cradles are compatible with Zebra Enterprise tablets with the “rugged frame” option
• Cradles accommodates the expansion back of the ET50/51 55/56 to easily add accessories (scanner/ hand strap, optional battery bay, and stylus)
• Integrated front camera on the ET5X is accessible when the tablet is in the cradle
• Compatible with either Windows or Android operation systems on the ET50/51 55/56
• Dual latch/locks provide tablet stability when docked in the cradle
• Guide pins align the tablet so it is properly placed in the cradle
• VESA 75mm mounting pattern
• Steel and Composite design for reduced overall weight
• Rugged construction for long-term durability

Product Details

• Model: ET50/51/55/56
• Device OEM: Zebra
• Warranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options Available
• Power Supply: Powered
• Testing Specifications: RoHS, CE, FCC, Vibration/Shock Testing: MIL-STD 810G, SAE J1455 Crash Test, Cycle test: Lock and docking mechanism – 10,000 cycles
• Antenna Pass-through: No RF
• Device Type: Tablet
• Industry: Material Handling, Utility
• Port Replication: NA

Downloads

• Installation Guide (PDF)
• Testing Summary (PDF)
