IronTag® - RAIN (UHF): 860 MHz to 960 MHz

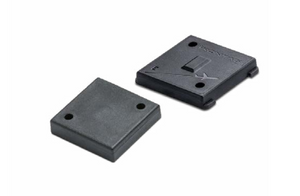

IronTag UHF transponders enable industrial RFID metal asset tracking for equipment and components in severe conditions. Originally designed for tracking aircraft parts, they tolerate harsh environments, extreme temperatures, and exposure to fuels, oils, salt water, and UV light. Durable IronTag units perform well on metal surfaces, mounting with industrial glues or high-temperature stickers. IronTag 206 units feature flanges and pre-drilled holes for secure fixation. The design meets demanding industry standard.

Product family: IronTag®
Sub-family: 206 / 206F
Description: High-temperature and flame resistant tags. Enable tracking of metal assets in harsh environments
Chip type: Monza X
EPC | TID: 128 bit | 96 bit
User memory up to: 8192 bit
Reading distance up to: 8 ft (2.5 m)
Dimensions Refer to datasheets for other available sizes: 1.3 × 1.2 × 0.24 in (33.7 × 31.1 × 6.1 mm)
Mount on metal: Yes
Moisture resistance: IP67, IP68
Food compatible: Yes
Operating temperature: -40° to +185° F (-40 to +85° C)
Peak temperature to: 428° F (220° C)
Flame resistant: Yes
Compliant with EPC C1 G2, ISO 18000-6C and others listed: ATA Spec 2000 DIN 40050-9 IEC 62262-IK07 GS1 EPC TDS 1.6 SAE AS5678
