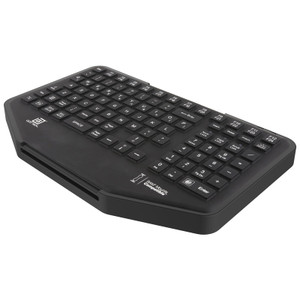

GDS® Keyboard™ with 10-Key Numeric Pad | RAM-KB4-USB

FEATURES

• 10-key numeric pad
• Clean key to easily disable keyboard during cleaning
• Backlight keypad with red illumination to reduce eye strain
• Communicates via USB 1.1 or 2.0

Complete your in-vehicle mobile office setup with this rugged GDS^® Tech^™ keyboard solution – featuring a 10-key numeric pad and USB cable. Integrated AMPS and VESA hole patterns make this keyboard RAM^® Mounts Compatible^™ with a wide variety of mounting components. In addition, slots on the top and bottom of the keyboard allow you to easily secure it using either the RAM^® Tab-Tite^™ dock or RAM^® Tab-Lock^™ dock.

HARDWARE INCLUDED

(4) #8-32 x 1/2" Machine Screws

PRODUCT DIMENSIONS

Overall Length: 11.625"
Overall Width: 7.5"

HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Box

OUTPUT CABLE LENGTH

33" Coiled Tension Relief USB Cable

OPERATING TEMPERATURE

-20°C to +60°C

STORAGE TEMPERATURE

-40°C to +85°C

CERTIFICATIONS

IP65, MIL-810G 514.5, SAE-J1455, FCC, CE, and RoHS
Compatible with Mac, Microsoft Windows 7/8/Vista/XP/2000/ME/98

WARRANTY

1 year warranty

WEIGHT

2.55 lb
