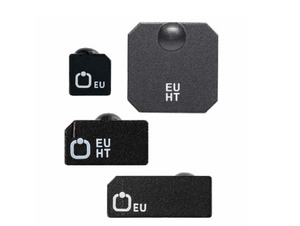

FIT Ceramic Tag - RAIN (UHF): 860 MHz to 960 MHz

HID FIT Ceramic passive contactless transponders easily integrate into RFID applications requiring discreet placement of small, featherweight tags that deliver sustainable performance.

FIT Ceramic units are optimized for placement on metal assets, such as tools, weaponry and surgical instrumentation. The hard shells encasing these tiny UHF transponders shield them from exposure to autoclave sterilization and demanding industrial environments. With a read range of up to 32.8 ft (10m), these tags deliver an excellent size / performance ratio when placed on metallic objects.

Product family: FIT Ceramic Tag
Sub-family: Ceramic UHF
Description: Micro-sized transponders for tracking small metal assets like tools and medical equipment.
Chip type: Monza R6-P Higgs 3 EM 4124
EPC | TID: 96 bit
User memory up to: 64 bit or 512 bit
Reading distance up to: 32.8 ft (10m)
Other frequencies: HF
Dimensions Refer to datasheets for other available sizes: max. 0.7 x 0.28 x 0.16 in (17.6 x 7.1 x 4.1 mm)
Mount on metal: Yes
Moisture resistance: IP68
Operating temperature: -40° to +185° F (-40° to +85° C)
Peak temperature to: 437°F (225°C)
Compliant with EPC C1 G2, ISO 18000-6C and others listed: ISO 18000-6C
