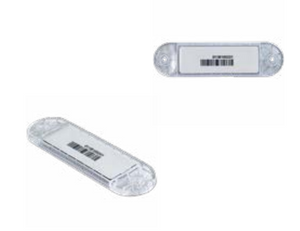

EXO Slim Tag Shell+ - RAIN (UHF): 860 MHz to 960 MHz

HID EXO Slim transponders are perfect for tagging shipping containers and metallic assets. Less than 3 mm thick, they mount flush to any surface. The high-impact polycarbonate housings protect internal components from environmental extremes and rugged handling. Some models allow for embossing, laser-engraving, or adhesive labels, while others have transparent housings with pre-printed barcodes or text.

These UHF tags are lightweight, dust-tight, waterproof, and protected against high-pressure, high-temperature spray downs (IP69K). They can be mounted on metal, plastic, or wood using nails, screws, or industrial adhesives.

Product family: EXO Slim Tag
Sub-family: Shell+
Description: Low-profile RFID tags ideal for for assets tracking. Mount via glue, screw or rivets.
Chip type: Monza R6-P, M730
EPC | TID: 28/96 bit | 48 bit | 128 bit
User memory up to: 64 bit
Reading distance up to: 34.7 ft (10.6 m)
Dimensions Refer to datasheets for other available sizes: max. 4.84 x 1.29 x 0.26 in (123 x 33 x 6.8 mm)
Mount on metal: Yes
Operating temperature: -22° to +149° F (-30° to +65° C)
Peak temperature to: 185° F (85° C)
Compliant with EPC C1 G2, ISO 18000-6C and others listed: MIL-STD-810 G, 1 kg Steel, 1m
