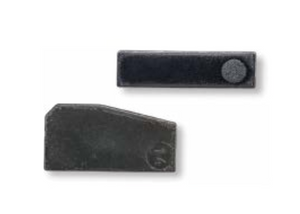

FIT Brick Tag - HF: 13.56 MHz / ISO 15693 / NFC*

HID FIT Brick Tag HF passive contactless transponders easily integrate into RFID applications requiring discreet placement of small, featherweight tags that deliver sustainable performance.

The FIT Brick Tag ABS ICODE SLIX2 transponder is among the smallest HF tags available. The tag provides a programmable user memory, optionally usable for NFC applications. Additional cryptographic functions are optionally available to support security sensitive applications like product authentication against counterfeit goods.

Product family: FIT Brick Tag
Sub-family: ABS
Description: Micro-sized transponders for embedding into assets
Chip type: ICODE SLIX2
User memory up to: 2560 bit UM
Reading distance up to: Dependent upon reader, environment and application
Other frequencies: UHF
Dimensions Refer to datasheets for other available sizes: 0.4 × 0.1 × 0.1 in (10 × 3.0 × 2.6 mm)
Moisture resistance: IP68
Operating temperature: -13° to +158° F (-25° to +70° C)
Peak temperature to: 284° F (140° C)
Compliant with ISO 18000-3 and others listed: ISO 15693 NFC Tag Type 5
